Fully Automated Sample Preparation
SPE-03 Automated SPE System
Presto Accelerated SPE System
Anti-clogging Frits&Tips
Mini-disks
SPE 03
No.1 choice for PFAS, supporting more than 200 PFAS labs wordwide.
Product Details
Our flow path integration technique gives the SPE-03 a very small footprint and can easily fit in any fume hood. Special features include bottle rinsing, separate waste outlets and nitrogen drying.
This fully automated SPE system is the top choice for PFAS following EPA Methods 533/537/1633, DoD QSM 5.3 Table B-15, ISO 21675 and various proprietary methods. Other applications include 1-4 Dioxane, pesticides, PCBs, PAHs, mycotoxins and more.
PFAS
- EPA Methods 537.1/533/1633
- TOF (AOF following EPA Method 1621 and EOF)
- ISO 21675
- DIN 38407-42
- non-targeted methods
6PPD-Q
Pesticides/PAHs/PCBs
- EPA Method 525.2
- EPA Method 525.3
- EPA Method 608.3
Basic/Neutral/Acidic compounds
- TCLP semi-volatiles per EPA Methods 8270/3535
1,4-Dioxane
- EPA Method 522
Nitrosamines
- EPA Method 521
Microcystins and Nodularin
Specifications
| Sample capacity | 8 samples in parallel |
| Sample volume | 0.5-4000 mL |
| SPE column sizes | 1/3/6/12/20 mL |
| Solvent capacity | Up to nine solvents (7 is standard) |
| Fractions | Up to 6 (2 is standard) |
| System control | 5" resistive touch screen |
| Dimensions | 35 cm x 35 cm x 45 cm |
| Weight | 13 kg |
Presto
The most Efficient SPE system for Large-Volume Environmental Samples capable of high flow rate extractions
The Presto SPE system boasts a range of advanced features, including newly integrated continuous pumps for swift sample loading. Extracting 8 x 1L samples in 80 minutes following EPA Method 525 using Mini-disks.
With individual flow control for each sample line, users have the flexibility to disable any line as needed. Additionally, pressure monitoring and flow correction functionalities adapt to variations in sample matrices, while providing cartridge pressure warnings for enhanced safety. The system's empty line detection feature alerts users in case of premature sample depletion due to clogging, leakage, or tubing placement, and intelligently stops sample loading on channels that have processed all the sample liquid.
Product Details
Specifications
| Sample capacity | 8 samples in parallel |
| Sample volume | 0.5-4000 mL |
| SPE column sizes |
1/3/6/12/20 mL |
| Solvent capacity | Up to nine solvents (7 is standard) |
| Fractions | Up to 6 (2 is standard) |
| System control | 7" resistive touch screen |
| Dimensions | 51cm x 35cm x 56cm |
| Weight | 25 kg |
Anti-clogging Tips
Specifications
- Anti-clogging tips for MOD-004 caps - pack of 50 (Part No. F-T-4)
- Anti-clogging tips for open sample lines - pack of 50 (Part No. F-T-M)
- Heavy-duty Anti-clogging tips for open sample lines - pack of 50 (Part No. F-T-M-H)
Anti-clogging Frits
Specifications
- Cartridge 1 is with original frit.
- Cartridge 2 has a multi-layer frit on top of the original frit.
- Cartridge 3 has the original frit replaced with the multi-layer frit.
Shown here are samples with considerable amounts of particulates extracted on 6 mL C18 cartridges. After loading 100 mL of sample, cartridge 1 is blocked significantly, whereas cartridges 2 and 3 are still working as normal.
Whether you use automated SPE or vacuum manifold, our anti-clogging frits can help achieve much smoother extraction of challenging samples.

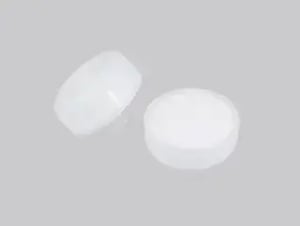

Inline Filters
Specifications
Lightweight Filter
- Fine inline filter for light particulates
- For up to 300mL drinking water
- Free of PFAS
High Capacity Filter
- Fine inline filter for light particulates
- For up to 300mL drinking water
- Free of PFAS
Mini-disks
Specifications
| Part No. | Description | Application | Size | Part No. |
| MD-BNA-30 | Packed with 25-um spherical mixed-mode polymer. 40 Mini-disks per box. | For simultaneous extraction of basic, neutral and acidic compounds. | 30mm | MD-BNA-30 |
| MD-525-30 | Packed with 25-um spherical mixed-mode polymer. 40 Mini-disks per box. | For extraction of hydrophobic and hydrophilic compounds. | 30mm | MD-525-30 |
| MD-C18-30 | Packed with C18 bonded 25-um spherical silica. 40 Mini-disks per box. | For extraction of hydrophobic compounds. | 30mm | MD-C18-30 |
